Baldwin Estate L015 Lever Set

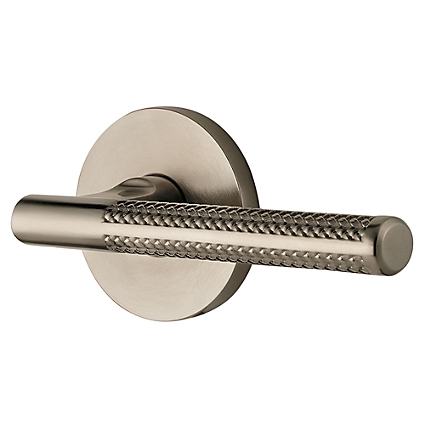

Baldwin Estate L015 Lever Set shown in Satin Nickel (150)
Retail Price: $254.00
Our Price: $177.80
You save 30%
SKU: L015.R016
Shipping Time:

Typically ships within 24 hours if order is placed before 2pm EST, M-F.

Customize Your Baldwin Estate L015 Lever Set
Subtotal:
$177.80
Description:
Hide

The highly crafted Baldwin Estate® Line is both stylish, flexible and available in many rich finishes.



Please note: The Baldwin Estate L015 Lever Set comes with the R016 Rose to cover a typical 2 1/8" bore. Please call our customer service department if you need to order this set for a 5/8" bore hole or require a different rose style.

  • Available in 4 different functions - passage, privacy, single dummy and dummy pair. Please click red question mark next to function drop down box for help with selections
  • Solid forged brass
  • Finished and Polished by hand
  • Includes rose designed to conceal a 2 1/8" bore
  • All latches have a 28 degree hub rotation for easy and smooth turning as well as an anti-friction insert.
  • No Visible Screws
  • Fits 1.375"-1.75" thick doors. 2 1/4" thick door available.



Installation Instructions-Click Here

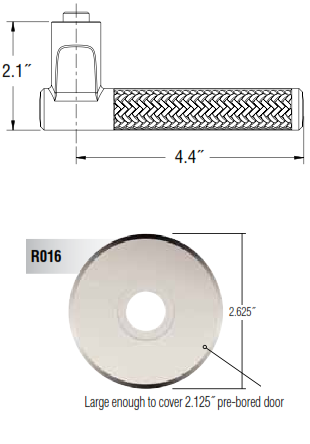

Dimensions:
Hide

Specifications:
Hide

ADA

YES

ANSI Certification

A156.2

Backset

Must Specify 2 3/4" or 2 3/8"

BHMA Certification

Grade 2

Collection

Estate A La Carte

Cross Bore

Passage/Privacy 2 1/8 bore, Fully dummy requires 5/8" bore. Half dummy surface mounted.

Door Thickness

Full dummy/Passage/Privacy 1-3/8" to 1-3/4". Half dummy surface mounted

Edge Bore

1"

Function

Passage/Privacy/Full Dummy/Single Dummy

Handing

Handing required on Single Dummy Levers

Handle Style

Solid Forged Brass Lever and Roses
