Formed of the finest materials and finished in rich hues, Baldwin entrysets greet every guest with distinguished style. Seen on some of America's most notable homes, Baldwin's entrysets are renowned for their quality and timeless beauty.

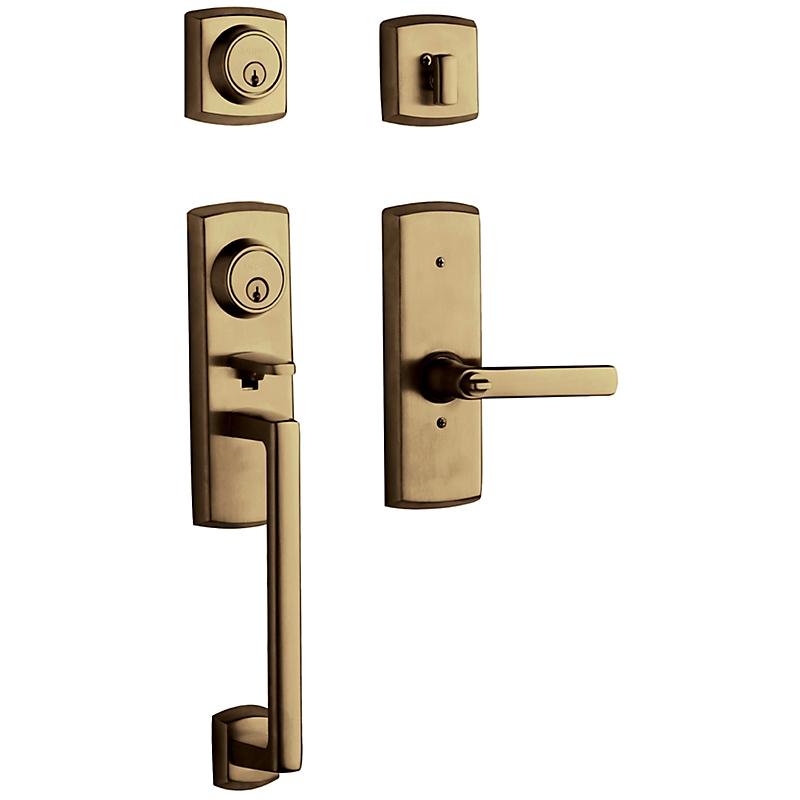

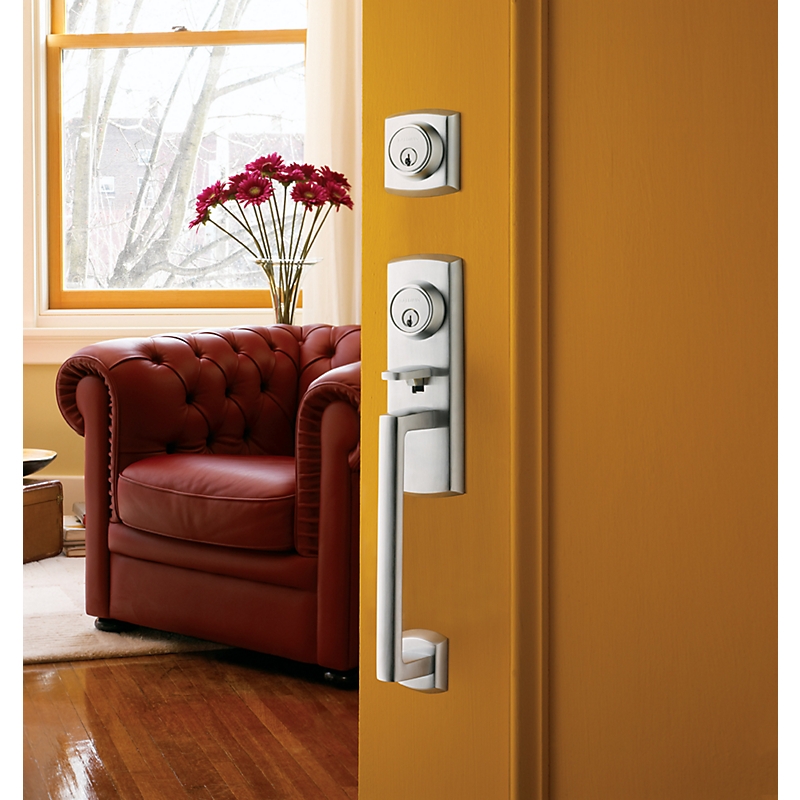

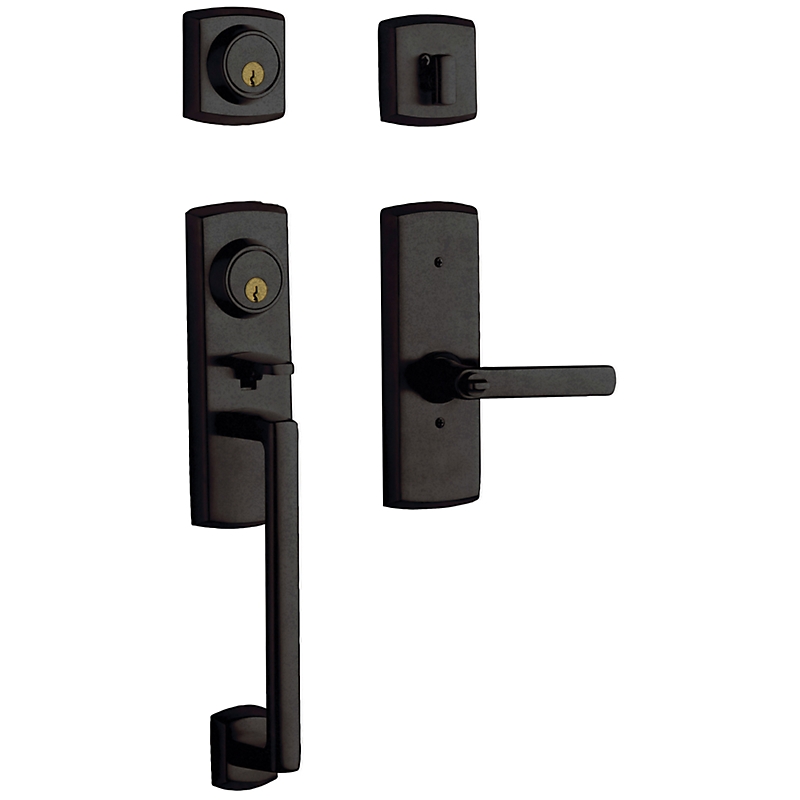

- Baldwin Estate 85385 Soho Two-Point Handleset with Soho Lever
- Solid forged brass
- 4 3/4" Minimum Center to Center bores for existing door preps - requires an additional bore hole in door.
- Adjustable backset 2-3/8" or 2 3/4"
- Deadbolt and latch bolt are also constructed of solid brass
- Deadbolt is furnished with specially designed reinforcing strike constructed of high grade steel for ultimate strength and durability
- Designed for easy installation in standard pre-bored wood or metal doors
- Accommodates door thickness of 1.75"- 2.0"
- 5-pin keying cylinder in active sets
- Functions available: single cylinder, double cylinder and full dummy
Two Point Lock Installation Instructions-Special Door Prep-Click Here
|
ADA |
NO |
|
ANSI Certification |
A156.5 |
|
Backset |
Adjustable 2-3/8" or 2-3/4" |
|
BHMA Certification |
Grade 1 Deadbolt |
|
Cross Bore |
2 1/8 Deadbolt & 2-1/8" for thumb press |
|
Cylinder |
5 Pin Schlage C |
|
Door Thickness |
1-3/4"- 2" |
|
Edge Bore |
1 |
|
Function |
Single Cylinder, double cylinder and dummy handleset |
|
Handle Style |
Grip |
|
Latch Faceplate |
Square Corner |
|
Lock Style |
Two-Point |
|
Mount |
Sectional Two-Point |
|
Product Class |
Residential |
|
Material |
Solid forged brass |
