Typically ships within 1 business day

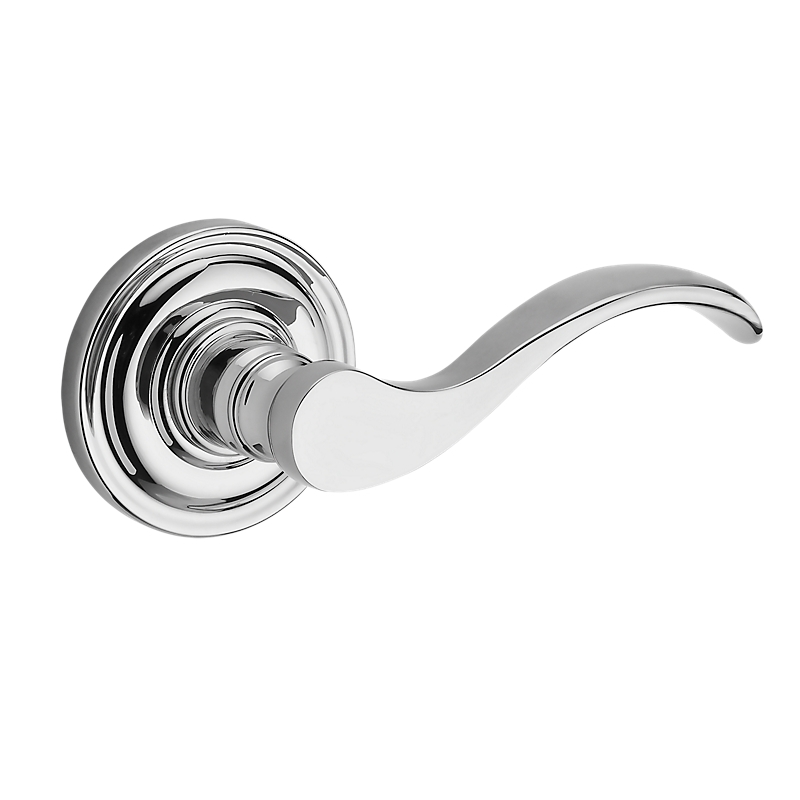

Baldwin Reserve's collection of finely crafted levers in rich finishes, offer authentic style for every home. Timeless in appeal, the classic shape of the Curve lever appeals to both modern sensibility and traditional styling.
- Solid forged brass construction.

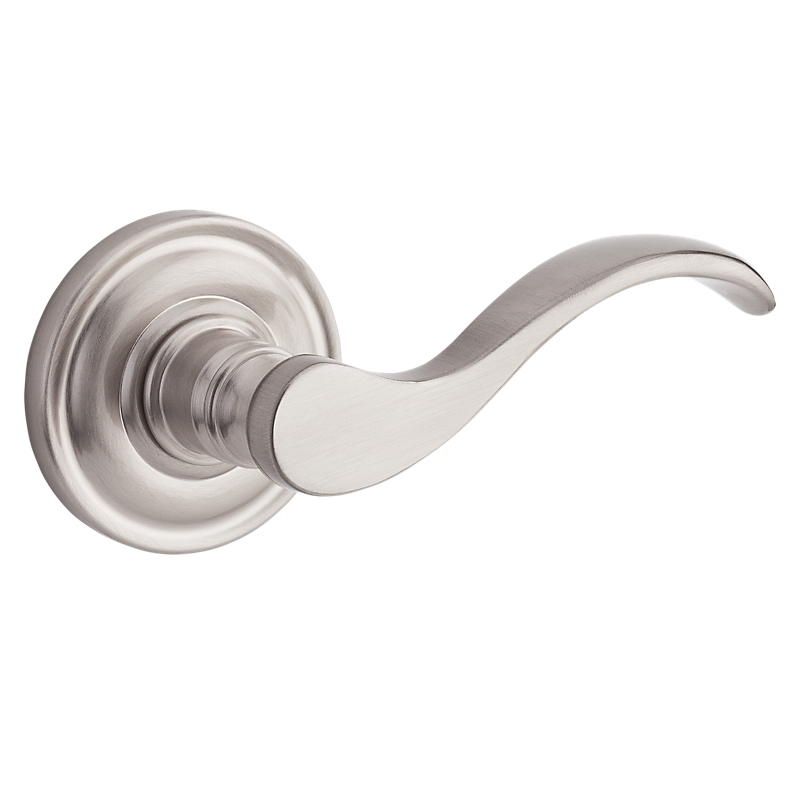

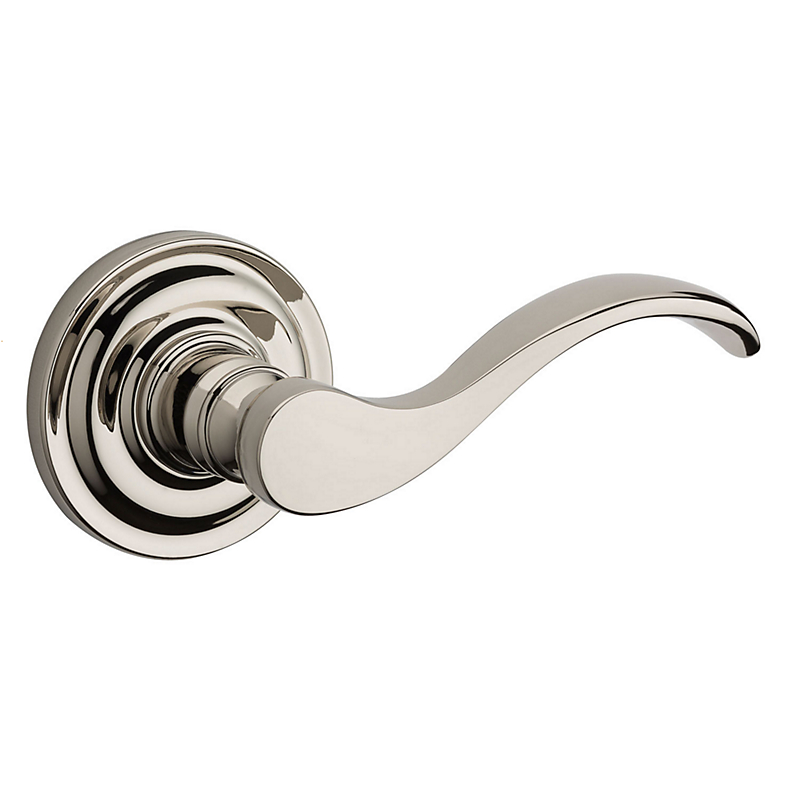

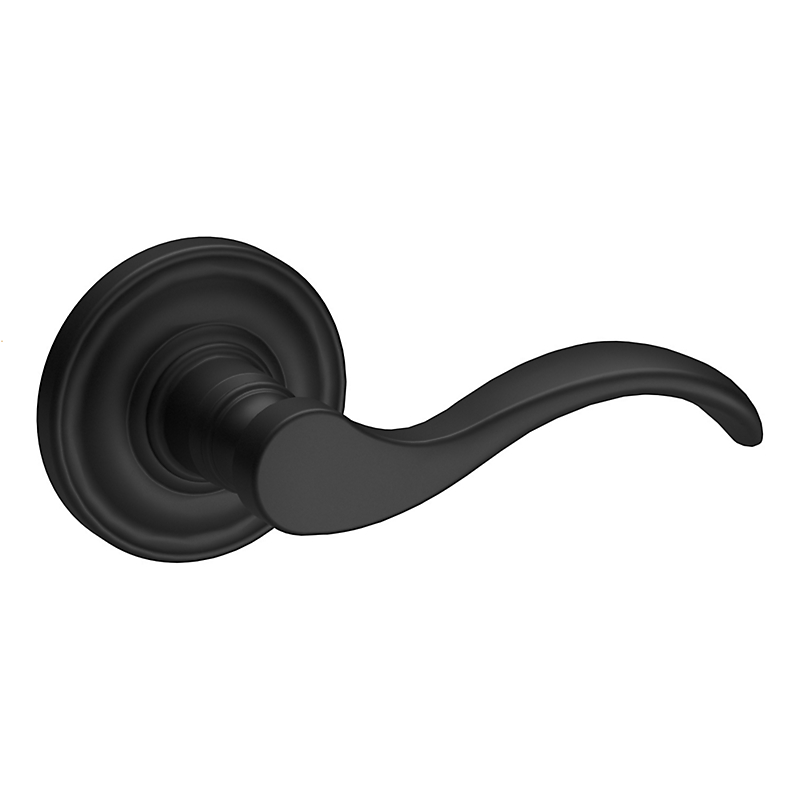

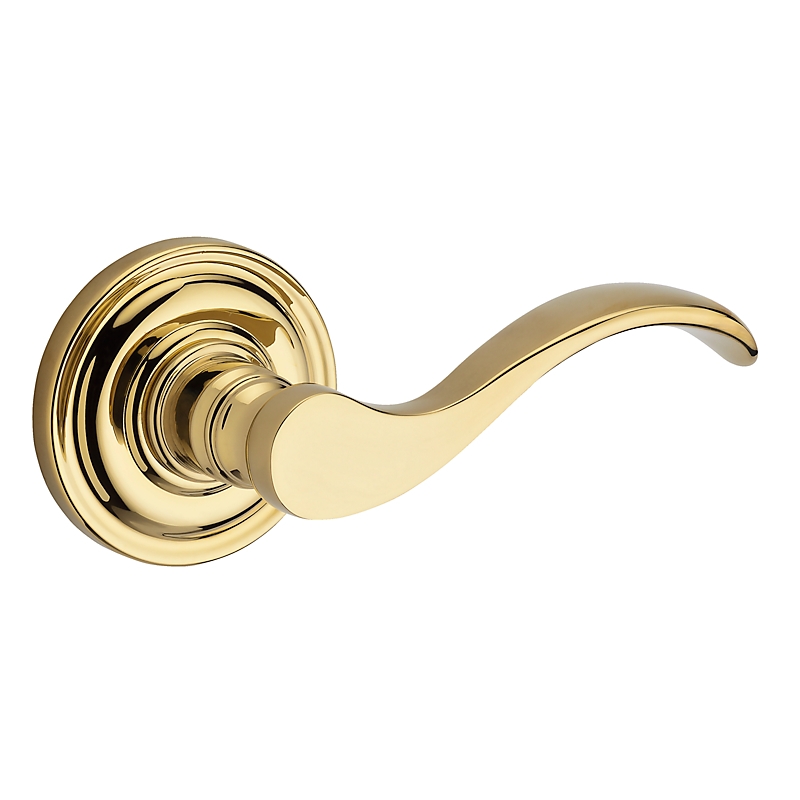

- To personalize your look, this Traditional inspired design is available in 6 finishes and with 3 roses
- Features easy-to-install spring assisted chassis for optimal operational strength.
- 2-1/8" cross bore and 1" edge bore for latch.
- Accommodates door thickness 1-3/8" to 2". Up to 2-1/2" thick door with a thick door kit.(additional charge)

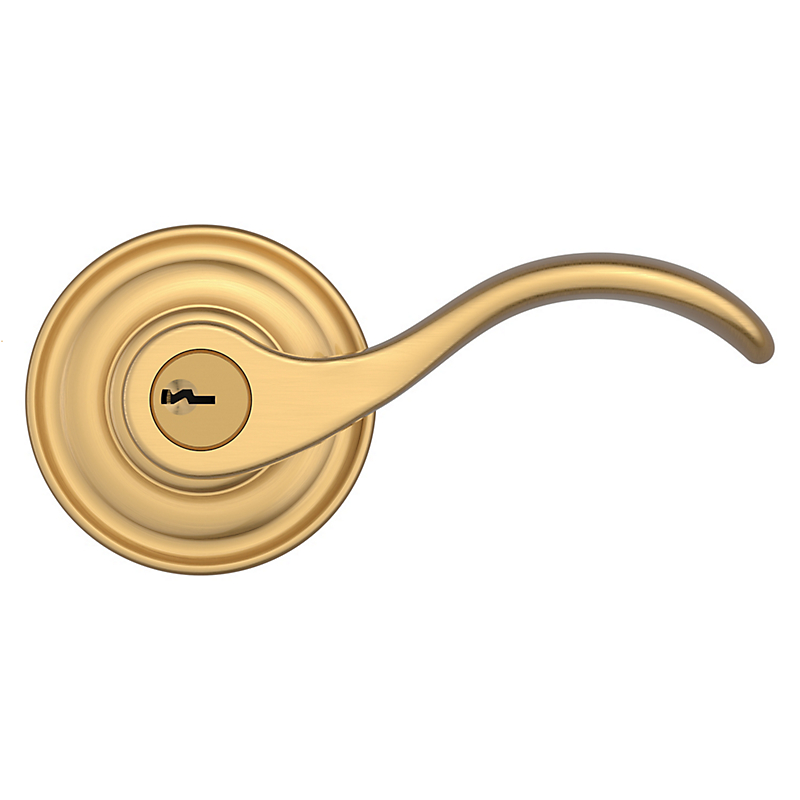

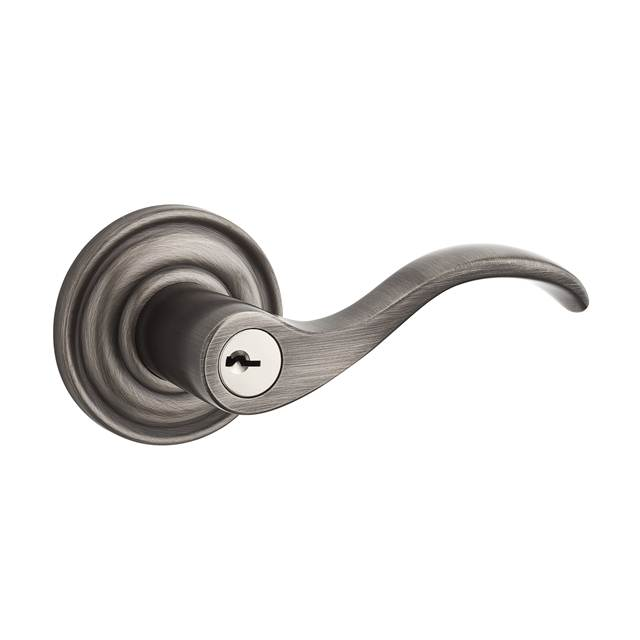

- Keyed entry featuring the traditional Baldwin pin and tumbler C-keyway
- Adjustable backset latch fits 2-3/8" (60mm) or 2-3/4" (70mm) pre-bored doors.
- Reverisble for all functions except for the half dummy where handing is required.
- Functions available: keyed entry, privacy, passage, full dummy, and half dummy. Full dummy is designed for each side of one door. Half dummy is surface mounted on doors that are not bored.
- Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty
Passage Lever only
Adjustable - 2-3/8" or 2 -3/4"
1-3/8" to 2" . 2 1/2" available (additional Charge)
Keyed Entry, Passage, Privacy, Full Dummy, Single Dummy
Reversible except half dummy required handing
Solid Forged Brass
- Half Dummy Knob and Lever Installation Guide
- Privacy and Passage Knob and Lever Installation Guide
- Entry Knob and Lever Installation Guide
- Full Dummy Knob and Lever Installation Guide
- Knob and Lever Drilling Installation Guide
- Full Dummy Knob and Lever Drilling Installation Guide
