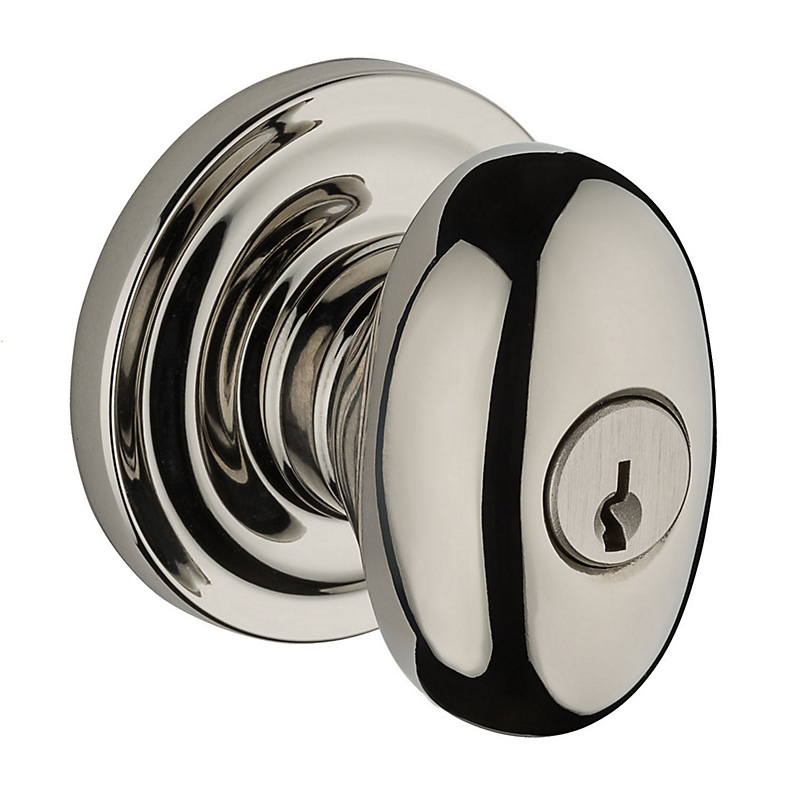

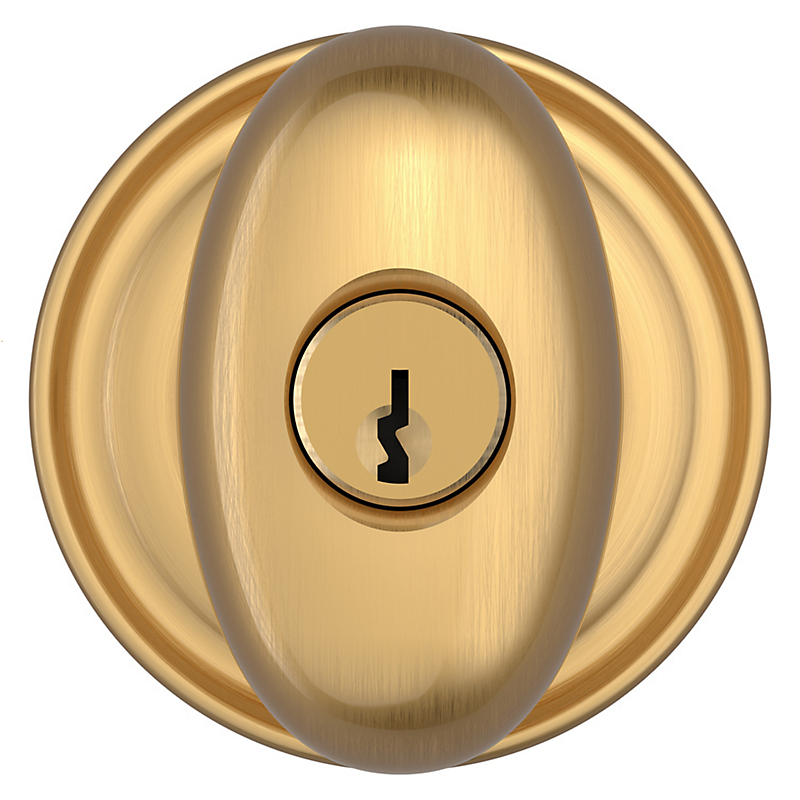

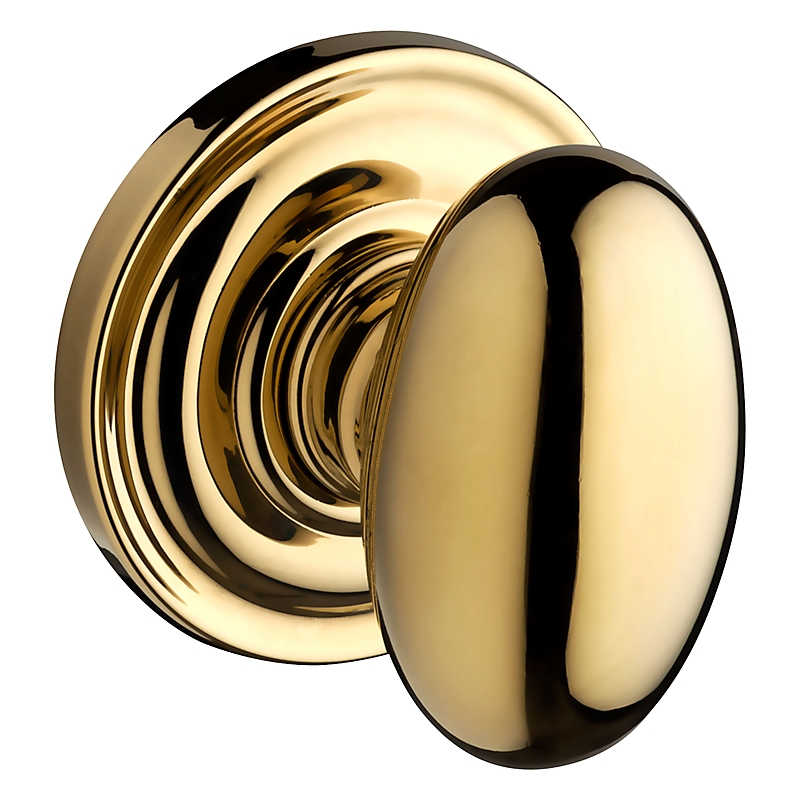

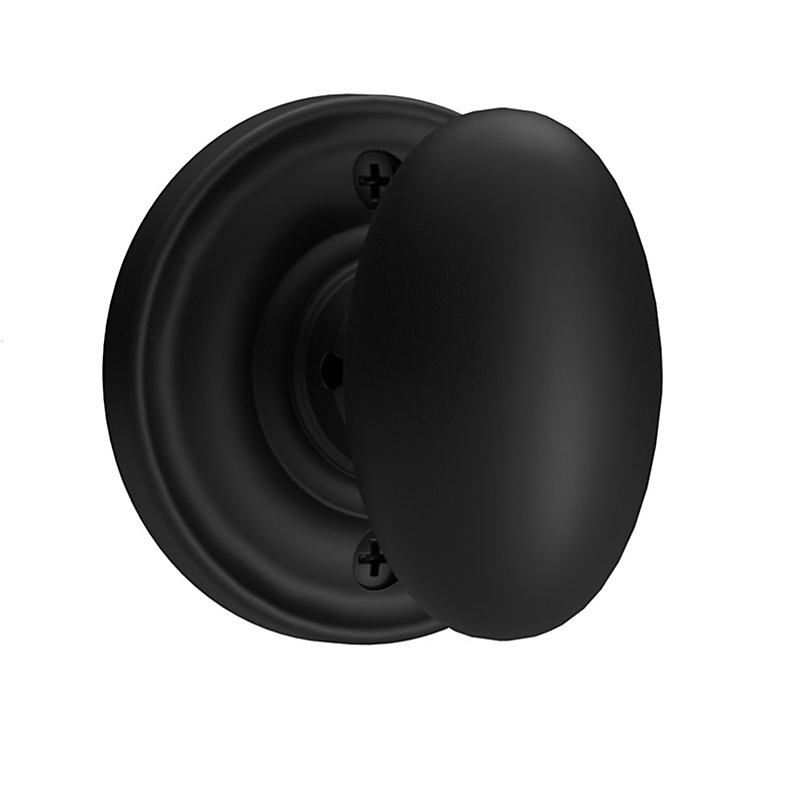

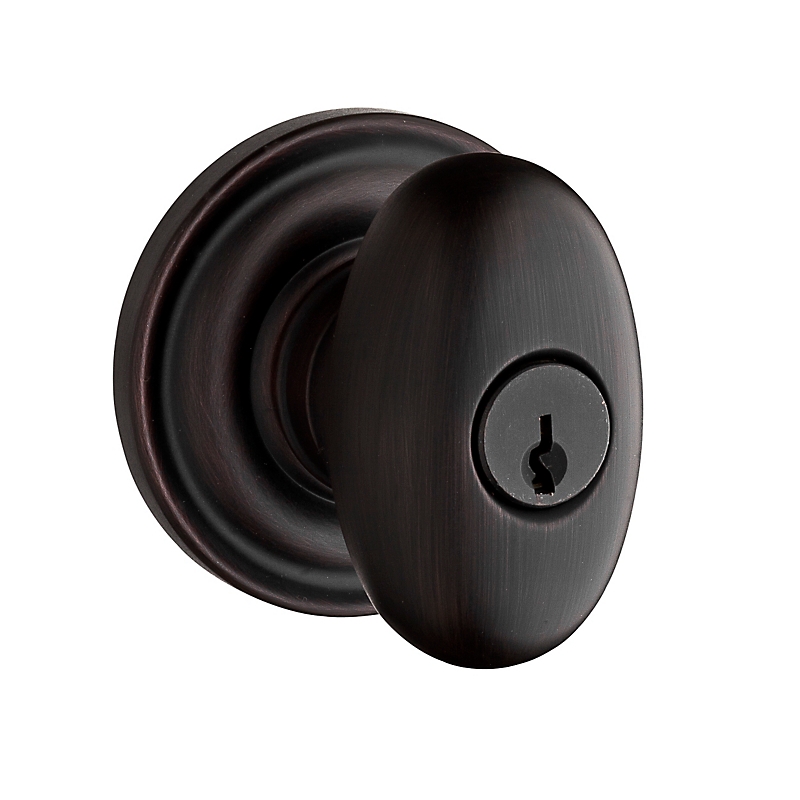

Baldwin Reserve Ellipse Knob

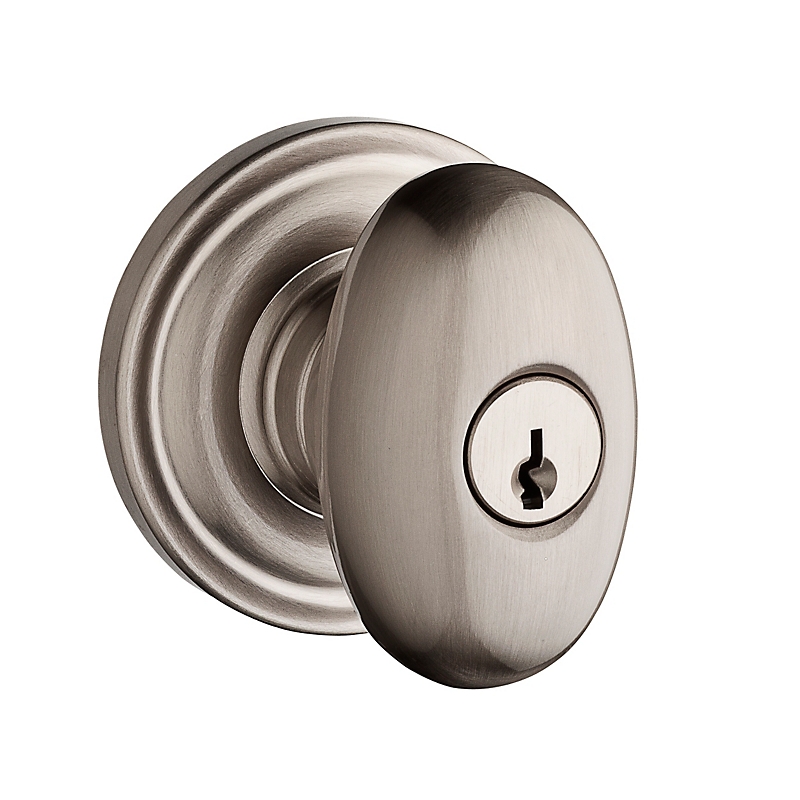

Baldwin Reserve Ellipse Knob with round rose (TRR) shown in Satin Nickel (150)
Retail Price: $107.00
Our Price: $74.90
You save 30%
SKU: Ellipse (ELL)
Shipping Time:

Typically ships within 1 business day

Customize Your Baldwin Reserve Ellipse Knob
Choose "keyed alike" to use the same key on multiple locks
Enter key # if you want custom keying
Subtotal:
$74.90
Description:
Hide

Baldwin Reserve's collection of finely crafted knobs in rich finishes, offer authentic style for every home. The refined beauty of the Ellipse knob is a perfect compliment to any traditional setting.

  • Solid forged brass construction.
  • To personalize your look, this Traditional inspired design is available in 6 finishes and with 3 roses
  • Features easy-to-install spring assisted chassis for optimal operational strength.
  • 2-1/8" cross bore and 1" edge bore for latch.
  • Accommodates door thickness 1-3/8" to 2". Up to 2-1/2" thick door with a thick door kit.(additional charge)
  • Keyed entry featuring the traditional Baldwin pin and tumbler C-keyway
  • Adjustable backset latch fits 2-3/8" (60mm) or 2-3/4" (70mm) pre-bored doors.
  • Handing not required.
  • Functions available: keyed entry, privacy, passage, full dummy, and half dummy. Full dummy is designed for each side of one door. Half dummy is surface mounted on doors that are not bored.
  • Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty

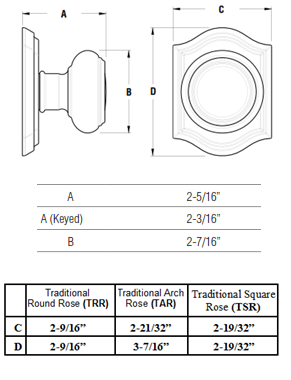

Dimensions:
Hide

Specifications:
Hide

ADA

NO

ANSI Certification

A156.2

Backset

Adjustable - 2-3/8" or 2 -3/4"

BHMA Certification

Grade 2

Collection

Reserve

Cross Bore

2 1/8"

Door Thickness

1-3/8" to 2" . 2 1/2" available (additional Charge)

Edge Bore

1"

Function

Keyed Entry, Passage, Privacy, Full Dummy, Single Dummy

Handing

Reversible.

Handle Style

Solid Forged Brass
