Baldwin Reserve Tube Lever

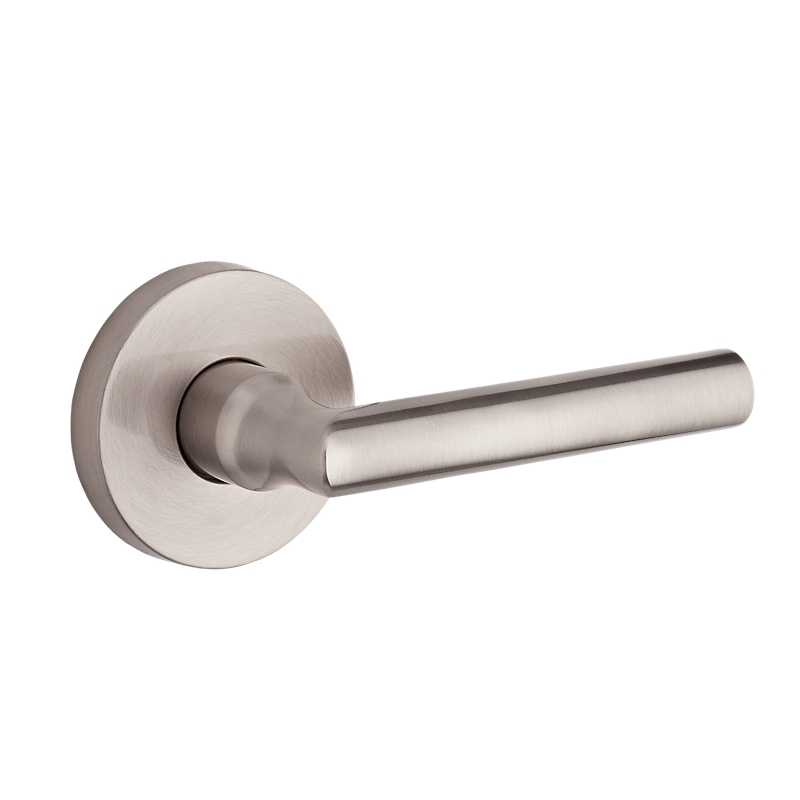

Baldwin Reserve Tube Lever shown with Round Rose (CRR) in Polishd Nickel
Retail Price: $107.00
Our Price: $74.90
You save 30%
SKU: Tube (TUB)
Shipping Time:

Typically ships within 1 business day

Customize Your Baldwin Reserve Tube Lever
Choose "keyed alike" to use the same key on multiple locks
Enter key # if you want custom keying
Subtotal:
$74.90
Description:
Hide

Baldwin Reserve's collection of finely crafted levers in rich finishes, offer authentic style for every home. The minimalistic design of the Tube lever blends clean and modern styling to compliment an urban lifestyle.

  • Solid forged brass construction.
  • To personalize your look, this Traditional inspired design is available in 3 finishes and with 2 roses
  • Features easy-to-install spring assisted chassis for optimal operational strength.
  • 2-1/8" cross bore and 1" edge bore for latch.
  • Accommodates door thickness 1-3/8" to 2". Up to 2-1/2" thick door with a thick door kit.(additional charge)
  • Keyed entry featuring the traditional Baldwin pin and tumbler C-keyway
  • Adjustable backset latch fits 2-3/8" (60mm) or 2-3/4" (70mm) pre-bored doors.
  • Reverisble for all functions except for the half dummy where handing is required.
  • Functions available: keyed entry, privacy, passage, full dummy, and half dummy. Full dummy is designed for each side of one door. Half dummy is surface mounted on doors that are not bored.
  • Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty

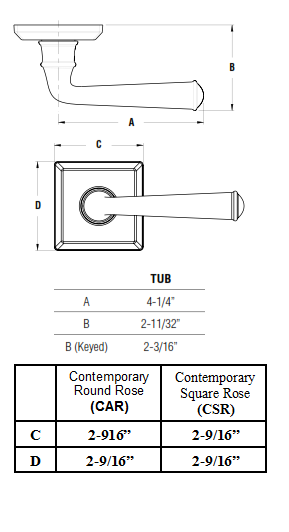

Dimensions:
Hide

Specifications:
Hide

ADA

Passage Lever only

ANSI Certification

A156.2

Backset

Adjustable - 2-3/8" or 2 -3/4"

BHMA Certification

Grade 2

Collection

Reserve

Cross Bore

2 1/8"

Door Thickness

1-3/8" to 2" . 2 1/2" available (additional Charge)

Edge Bore

1"

Function

Keyed Entry, Passage, Privacy, Full Dummy, Single Dummy

Handing

Reversible except half dummy required handing

Handle Style

Solid Forged Brass
