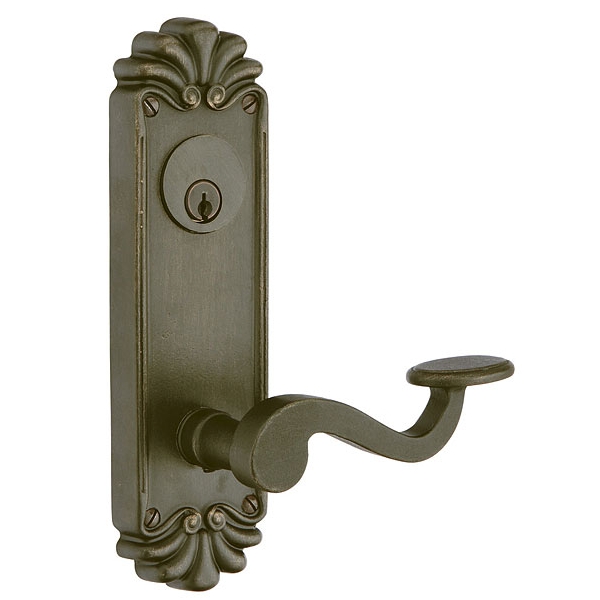

Emtek #16 Style Lost Wax Cast Bronze 8-1/4" Keyed Sideplate (3-5/8" C-C Bore)

Emtek 6020, 6021, 6025 #16 Style 8-1/4
Retail Price: $192.00
Our Price: $192.00
SKU: 6020,6021,6025
Shipping Time:

Custom Built - typically Ships within 7-10 Business Days from Emtek

Customize Your Emtek #16 Style Lost Wax Cast Bronze 8-1/4" Keyed Sideplate (3-5/8" C-C Bore)
Choose "keyed alike" to use the same key on multiple locks
Enter key # if you want custom keying
Subtotal:
$192.00
Description:
Hide

The Emtek 6020, 6021, 6025 #16 Sideplate is available in 4 finishes with a choice of 11 different knobs or levers. Please make your selection from the menus.

  • Requires a 3 5/8" Center to Center bore measurement. This means the distance from the center of the thumb-turn hole to the center of the door knob hole should measure 3 5/8" (NOT 5 1/2" standard door prep)
  • Available with Single Cylinder (keyed on exterior w/turn on interior) or Double Cylinder (keyed on both sides)
  • Bronze Knobs, Levers & Plates.
  • Fits doors from 1-5/8" to 3" thick (single cylinder) and 1-1/2" to 2-3/4" thick (double cylinder)
  • 2 3/8" or 2 3/4" backset/latch
  • Door handing required when ordering.
  • Complete set. Includes knobs and backplates for both sides of the door, latch and strike plate and mounting hardware.
  • Shipped with square corner mortise plates and strike plate. Rounded corner available upon request.
Dimensions:
Hide

Specifications:
Hide

Backset

 2-3/8" or 2-3/4"

Collection

Tuscany

Cross Bore

2-1/8"

Door Thickness

1-1/4" to 3"

Edge Bore

1

Function

Single Cylinder, Double Cylinder, Dummy Pair

Handing

Required

Handle Style

Solid Cast Bronze Knobs, Levers & Plates



Emtek Finish Samples
