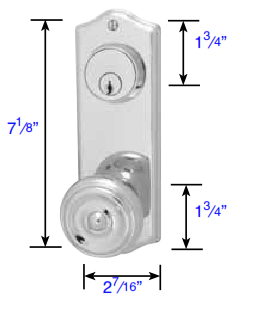

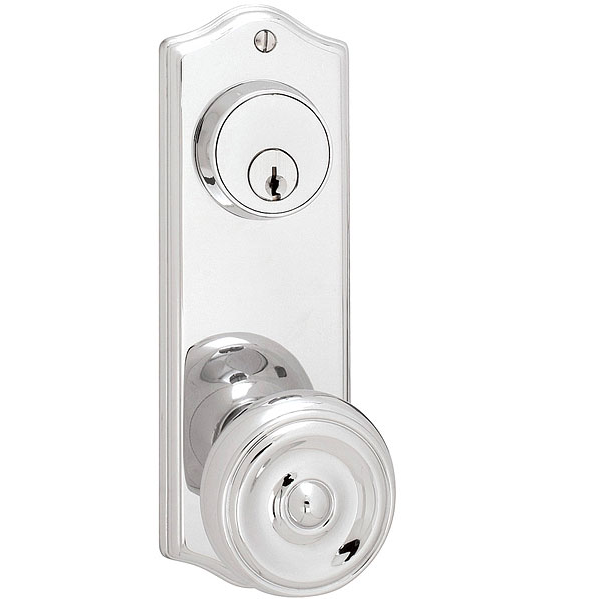

Emtek Colonial 7-1/8" Keyed Style Sideplate (3-5/8" C-C Bore)

Emtek 8060, 8065, 8160 Colonial 7-1/8
Retail Price: $172.00
Our Price: $172.00
SKU: 8060,8065,8160
Shipping Time:

Custom Built - typically Ships within 7-10 Business Days from Emtek

Customize Your Emtek Colonial 7-1/8" Keyed Style Sideplate (3-5/8" C-C Bore)
Choose "keyed alike" to use the same key on multiple locks
Enter key # if you want custom keying

The Colonial Sideplate is available in 7 finishes with a choice of 40 different knobs or levers. Please make your selection from the menus.

  • Requires a 3 5/8" CC bore measurement. This means from the center of the deadbolt hole to the center of the door knob hole should measure 3 5/8" (NOT 5 1/2" like standard doors)
  • Available with Single Cylinder Deadbolt (keyed on exterior w/turn on interior) or Double Cylinder Deadbolt (keyed on both sides) and non locking knob/lever (passage)
  • Solid Brass Knobs, Levers and Plates.
  • Genuine Crystal and Porcelain Knobs
  • Fits doors from 1-1/4" to 2-3/4" thick (single cylinder) and 1-5/8" to 2-1/2" thick (double cylinder)
  • 2 3/8" or 2 3/4" backset/latch
  • Door handing required when ordering,
  • Choose from many lever and knob styles and several finishes.
  • Complete set. Includes knobs and backplates for both sides of the door, latch and strike plate and mounting hardware.
  • Shipped with square corner mortise plates and strike plate. Rounded corner available upon request.



 2-3/8" or 2-3/4"


American Classic

Cross Bore

2-1/8" and 3 5/8 center to center

Door Thickness

1-1/4" to 2-34" single cylinder & 1-5/8" to 2-1/2" double cylinder

Edge Bore



Single or Double Cylinder Deadbolt and Dummy Pair (keyed)



Handle Style

Solid Forged Brass, Genuine Porcelain or Crystal


Emtek Finish Samples
