Nostalgic Warehouse Studio Plate with Waldorf Knob (STUWAL)

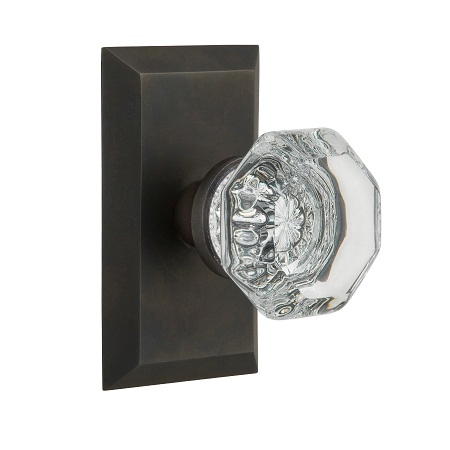

Nostalgic Warehouse Studio Plate with Waldorf Knob Oil Rubbed Bronze
Retail Price: $150.00
Our Price: $112.50
You save 25%
SKU: STUWAL
Shipping Time:

Nostalgic products are custom assembled & typically ship with 5 to 7 Business Days

Customize Your Nostalgic Warehouse Studio Plate with Waldorf Knob (STUWAL)
Subtotal:
$112.50
Description:
Hide

With it’s crisp clean edges, the classic octagonal shape of the lead crystal Waldorf Knob creates a lucent look that will enhance any door. All Nostalgic Warehouse knobs are mounted on a solid (not plated) forged brass base for durability and beauty.

  • We  recommend using Brass (not crystal) on exterior doors
  • Top quality, forged brass plates and 12% Lead Crystal Knob
  • Engineered for use on pre-drilled doors 2 1/8" bore holes.
  • 2 3/8" or 2 3/4" backset/latch
  • Fits doors 1 3/8" - 1 3 /4" thick
  • Privacy function has a push button on the rosette or backplate to activate lock
  • 3 Year Mechanical and Finish Warranty




Installation Instructions-Click Here








Dimensions:
Hide

Studio Plate

Height  4"  Width  2.4"



Waldorf Crystal Knob

Diameter  2.25"  Projection  2.57"



Specifications:
Hide

ADA

No

ANSI Certification

A156.2

Backset

 2-3/8" or 2-3/4"

BHMA Certification

Grade 2

Collection

Nostalgic Studio

Cross Bore

2-1/8"

Door Thickness

1-3/8" to 1-3/4"

Edge Bore

1

Function

Passage, Privacy, Single and Full Dummy

Handing

Reversible

Handle Style

Forged Brass  Rose and 12% Lead Crystal Knob
