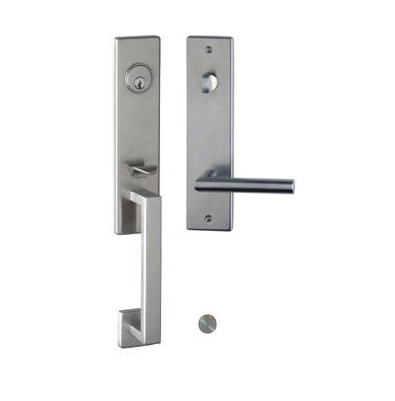

Omnia Urban 12 Stainless Steel Tubular Handleset

Omnia Urban 12 Stainless Steel Tubular Handleset
Retail Price: $485.00
Our Price: $363.75
You save 25%
SKU: URBAN12
Shipping Time:

Ships Within 24 hours if the order is placed before 2pm EST.

Customize Your Omnia Urban 12 Stainless Steel Tubular Handleset
Choose "keyed alike" to use the same key on multiple locks
Enter key # if you want custom keying
Subtotal:
$363.75
Description:
Hide

Omnia's line of stainless steel hardware is designed to accentuate any setting where a modern, sophisticated look is desired. Made from the highest grade material available, every piece is strong, durable, and resistant to corrosion and staining, while virtually effortless to clean

  • Omnia Urban 12 Stainless Steel Handleset
  • 5-1/2" center to center bores (2-1-8" in diameter)
  • Accommodates 1-3/4" thick doors
  • 5 Pin Cylinder - C Keyway
  • Functions available - single cylinder and dummy
Dimensions:
Hide

Dimensions:

 16-3/4" Exterior Length x 2-1/2"

Width x 2-3/8" Projection

 10-1/2" Interior Length x 2-1/2"

Width x 2-5/8" Projection



Specifications:
Hide

ADA

Yes

ANSI Certification

A156.5

Backset

Adjustable 2-3/8" or 2-3/4"

BHMA Certification

Grade 1 Deadbolt

Cross Bore

2 1/8 Deadbolt & 2-1/8" for thumb press

Cylinder

5 Pin Schlage C

Door Thickness

1-3/4"

Edge Bore

1

Function

Single Cylinder and dummy handleset

Handle Style

Grip

Latch Faceplate

Square Corner

Lock Style

Single Point

Mount

3/4 Escutcheon

Product Class

Residential

Material

Stainless Steel
